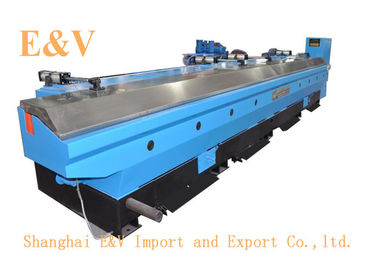

8- 3mm-2.6mm 9D in-line big drawing line for copper wire

8- 3mm-2.6mm  9D in-line big    drawing line for copper wire
8- 3mm-2.6mm  9D in-line big    drawing line for copper wire

Large Image :  8- 3mm-2.6mm 9D in-line big drawing line for copper wire

Product Details:
Place of Origin: CHINA
Brand Name: E&V
Model Number: 9D
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 45days
Supply Ability: 1set per month
Detailed Product Description
Machine Type: Rod Breakdown Machine Inlet Dia: 8mm
Outlet Dia: 3mm~2.6mm Line Speed (max): 800mpm
Drawing Speed: 2t/h
High Light:

copper drawing machine

,

wire drawing equipment

 8mm - 2.6mm 9D Copper Wire Drawing Machine

 I Introduction

9D big drawing machine for copper wire is used for producing oxygen free or low round copper wire and the biggest input size is 8mm. Through nine processes to continuous drawing copper rod 8mm to copper wire 3mm-2.6mm, using automatic plate for paying off and automatic coiling.



II Main parameter

NO. Item Parameter
1 model DL400-9D big drawing machine for copper wire
2 inlet dia Φ8mm
3 outlet dia Φ3mm~Φ2.6mm
4 Drawing die numbers 9
5 line speed (max) 800MPM
6 structure of machine weld
7 Drawing speed 2t/h
8 Area reduction rate of m/c 23.6%
9 capstan reduction rate of m/c 20%
10 capstan Tungsten carbide
11 capstan dia (max) Φ400
12 Fix speed capstan dia (mm) Φ400
13 Total power 160kw,DC motor
14 coiling power 11kw /15kw three phase AC frequency motor
15 the way of controlling speed AC control +frequency control
16 transmission way Grinding gear(20CrMnTi Sophisticated helical gear )
17 Pay off way Overhead
18 Cooling way Fully immersed
19 service voltage Three phase 380V(AC),50Hz


III Main component

The unit consists of pay off device, 9D big drawing machine, pointing rolling machine, tension device,



Coiling take-up machine, TH450 Horizontal annealing machine (selectable device), Emulsion system,Lubrication system, electric system and others.



IV Jiecheng characteristics and advantages

That machine absorb advantages of advanced high speed copper drawing machine at home and abroad.Adopting drum to draw copper wires in the drawing liquid,such as same diameter drum,drawing,sliding type wire drawing machine.The device having many advantages,such as easy to operate,high efficient,low cost,easy maintain.

8- 3mm-2.6mm  9D in-line big    drawing line for copper wire 0
