17 mm Brass Rod Continuous Upcaster Line Brass Casting Equipment 400KW AC 380V

China 17 mm Brass Rod Continuous Upcaster Line Brass Casting Equipment 400KW AC 380V supplier
17 mm Brass Rod Continuous Upcaster Line Brass Casting Equipment 400KW AC 380V supplier 17 mm Brass Rod Continuous Upcaster Line Brass Casting Equipment 400KW AC 380V supplier 17 mm Brass Rod Continuous Upcaster Line Brass Casting Equipment 400KW AC 380V supplier

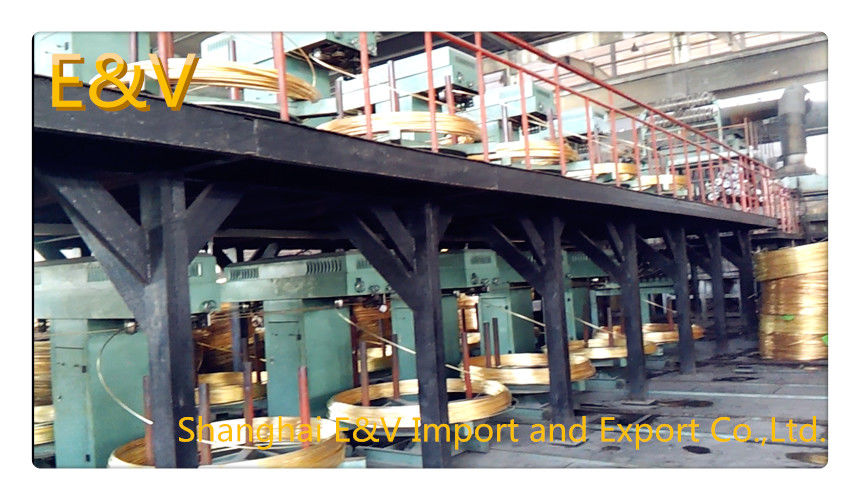

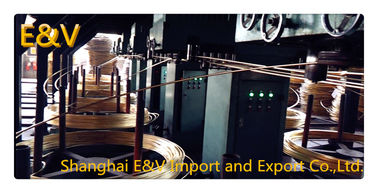

Large Image :  17 mm Brass Rod Continuous Upcaster Line Brass Casting Equipment 400KW AC 380V

Product Details:

Place of Origin: CHINA
Brand Name: E&V
Model Number: SYJ1217-I3

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 60days
Supply Ability: 1set per month
Contact Now
Detailed Product Description
Type: Rod Casting Machine Function: Making Brass Rod
Color: Optional Strand Dia: 8~35
Yearly Capacity: 1000~12000

17mm brass rod continuous upcaster line / industrial furnace







Main Technology Parameter For Copper Rod Up-casting Machine







8000MTФ8mm→Ф14.4mm



8000MTФ17mm→Ф30mm



10000MTФ8mm→Ф14.4mm

Main para-meter 1 Model :SYJ1208-I3 Model :SYJ1217-I3 Model :SYJ2008-I3
2 Yearly capacity:6000mt Yearly capacity:6000mt Yearly capacity:10000mt
3 Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands :12 Casting strands :12 Casting strands :20
5

Casting diameter:

Ф8mm→Ф14.4mm

Casting diameter:

Ф17mm→Ф30mm

Casting diameter:

Ф8mm→Ф14.4mm

6 Casting speed:0~3000mm/min Casting speed :0~1000mm/min Casting speed:0~3000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:1020kg/h Copper melting velocity:1020kg/h Copper melting velocity:1270kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: frequency automatic adjust Take-up form: automatic adjust Take-up form: frequency automatic adjust
13 Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by rod, manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method: air clamping Rod clamping method: manual clamping Rod clamping method: air clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:400KW AC three-phase 380V Total power:400KW AC three-phase 380V Total power:500KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

17 mm Brass Rod Continuous Upcaster Line Brass Casting Equipment 400KW AC 380V

Some question of machine



How many yearly capacity of casting machine?

1000~12000mt

17 mm Brass Rod Continuous Upcaster Line Brass Casting Equipment 400KW AC 380V

what's the upcasting speed of 8mm casting machine ?

0~3000mm/min
