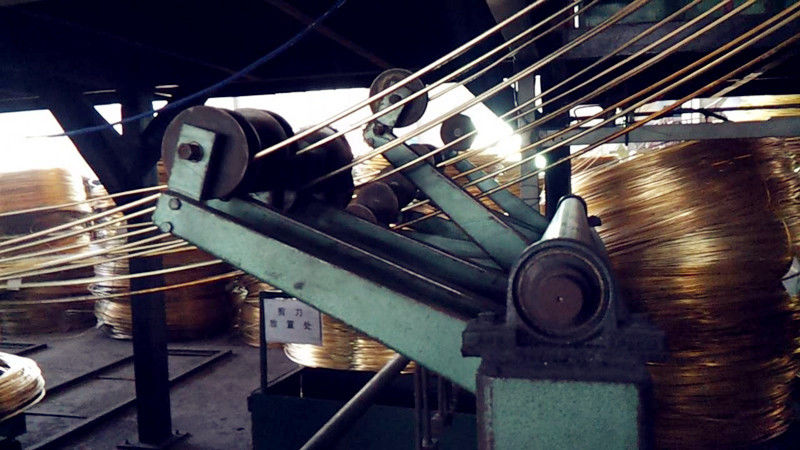

10mm ~ 200mm Brass Bar Horizontal Continuous Casting Machine Servo Motor Controlled

10mm ~ 200mm Brass Bar Horizontal Continuous Casting Machine Servo Motor Controlled
10mm ~ 200mm Brass Bar Horizontal Continuous Casting Machine Servo Motor Controlled

Large Image :  10mm ~ 200mm Brass Bar Horizontal Continuous Casting Machine Servo Motor Controlled

Product Details:
Place of Origin: China
Brand Name: E&V
Model Number: SYJ1008-I3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Detailed Product Description
Color: Optional Yearly Capacity: 3000mt-10000mt
Function: Producing Copper Rod Product: Brass Rod
Working Hour: 7920h Strand NO.: 6-20
High Light:

Brass Casting Machines

,

continuous caster machine

,

200mm Brass Bar Continuous Casting Machine

10mm ~ 200mm Brass Bar Horizontal Continuous Casting Machine Servo Motor Controlled


Technical parameters

1. Raw materials:copper ,brass,bronze
2. Productivity:500kg~20Ton/day
3. The size of the finished products:8mm~300mm


Main Technology Parameter For Copper Rod Up-casting Machine4






10000MTФ17mm→Ф30mm


12000MTФ8mm→Ф14.4mm


12000MTФ17mm→Ф30mm

Main para-meter 1 Model :SYJ2017-I3 Model :SYJ2408-I3 Model :SYJ2417-I3
2 Yearly capacity:10000mt Yearly capacity:12000mt Yearly capacity:12000mt
3 Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:20 Casting strands:24 Casting strands:24
5

Casting diameter:
Ф17mm→Ф30mm

Casting diameter:
Ф8mm→Ф14.4mm

Casting diameter:
Ф17mm→Ф30mm

6 Casting speed :0~1000mm/min Casting speed 0~3000mm/min Casting speed 0~1000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:
φ700mm×φ1500mm×800mm

Take-up coil standard:
φ700mm×φ1500mm×800mm

Take-up coil standard:
φ700mm×φ1500mm×800mm

10 Copper melting velocity:1270kg/h Copper melting velocity:1520kg/h Copper melting velocity:1520kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: automatic adjust Take-up form: frequency automatic adjust Take-up form: automatic adjust
13 Take-up plate driven approach: pushed by rod ,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by rod ,manual adjusting
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method: manual clamping Rod clamping method: air clamping Rod clamping method: manual clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:500KW AC three-phase 380V Total power:600KW AC three-phase 380V Total power:600KW AC three-phase 380V


price



A price: price negotiable
AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )
AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)


A price: price negotiable
AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )
AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable
AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )
AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)


some questons for uo castng machine, maybe u are interested in

1. How many types of furnace?
Single body furnace, double body furnace,3-body furnace,4-body furnace and 5-body furnace. And different capacity can use different furnace. Sometimes, we may refer to client’s request.

2. What's the main technology process of upcasting machine?
The upcasting line (unit for shot as here below) is used to produce the long and bright oxygen-free copper rod. The induction melting furnace melt the copper cathode into liquid, the liquid keeps off the air by charcoal or graphite flake in case of be oxidation. The holding furnace keeps the copper liquid temperature in 1150℃آ±10℃, the casting machine crystallizes the copper liquid in crystallizer quickly, then continuously produces copper rod, then the final product will be finished through the double head take up machine and other accessory equipment.

3. How many features of upcasting machine?
1. Energy-efficient furnace,high-efficient of melting,long working life,a better heating preservation effect.
2. Coil current have warning function,to avoid the stoppage of copper channel.
3. Quick lifting device is used for installing and changing the crystallizer.High-speed installing (within 10 seconds). Using Emergency situation
4. The gapless connecting expansion sleeve is used for the traction device, the PLC is used to control the servo motor correctly, and to assure that each order from the PLC is correct and accurate.
5. High accuracy and low backlash planetary reducer is used to make the freezing time more accurate, thus to increase the crystallizing quality.
