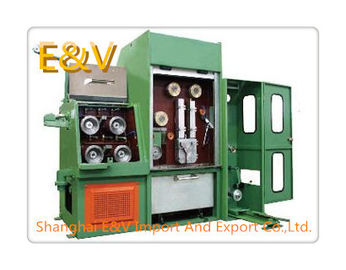

Small Fine Wire Drawing Machine 2500 MPM / MAX 4 Vertical Type Bearings

China Small Fine Wire Drawing Machine 2500 MPM / MAX 4 Vertical Type Bearings supplier
Small Fine Wire Drawing Machine 2500 MPM / MAX 4 Vertical Type Bearings supplier Small Fine Wire Drawing Machine 2500 MPM / MAX 4 Vertical Type Bearings supplier

Large Image :  Small Fine Wire Drawing Machine 2500 MPM / MAX 4 Vertical Type Bearings

Product Details:

Place of Origin: China
Brand Name: E&V

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standard export packing
Delivery Time: 20 days
Supply Ability: 1set per 20days
Contact Now
Detailed Product Description
Name: Fine Drawing Machine Color: Option
Input Size: 0.4mm Output Size: 0.08mm
Usage: For Copper Wire Output Speed: 2500 MPM/ MAX

Small Fine Wire Drawing Machine 2500 MPM / MAX 4 Vertical Type Bearings



A Main Parameter:

1. Usage: used for copper wire: drawing processing

2. Input diameter: φ1.0 mm - φ0.5mm

3. Output wire diameter: φ0.25mm -φ0.08mm

4. Output speed: 2500 MPM/ MAX

5. No. of die (Max): 24pcs (one set provided by the seller); outside diameter specification Φ25mm×8

6. Wire-drawing area reduction: NO.1-NO. 23 die: 13% NO. 24 die: 8%

7. Wire-drawing mode: 4 bearings of vertical type, horizonal wire-drawing slipping continuous wire-drawing.

  • Power: main motor: 15HP(11KW) AC motor controlled by inverter

Coiling motor: 5.5HP(3.7KW) AC motor controlled by inverter

9. Machine composition: integrated casting

10. Transmission part: whole machine transmit by flat belt

  • Wire-drawing wheel: chromic oxide sprayed on the surface

12. Wire-drawing lubrication system: 40 L/min of wire-drawing oil needed ( not include water pump); spray over die and wire-drawing wheel

13. Coiling bearing size: outside diameter φ300mm (it can be designed to the buyer's requirements); the quantity of the coiling bearing wires: 40-60KG

14. Up-down bearing mode: center-prop screw pressing mode, attached with up-down bearing trolley.

15. Wire-setting mode: 110W Low-speed synchronous motor; width (Max): 270mm

16. Coiling control mode: equip heavy tension buffer rod, automatically calculate, amend and control coiling tension.

  • Safe hood: permeable holes reticulation in transmission area; Stainless steel plate in wire-drawing area ; fully enclosed except 3 view windows in coiling area.

18. Brake:20KG magnetic brake.

19. Operating panel and control box

20. Others:

20.1 wearing parts: wire-drawing wheel, drive belt, outlet distributing wheel, wire-setting wheel.

20.2 test run :

20.2.1 After the installation is complete, both sides should confirm that the equipment meets the technical criterion, and determine test run time and methods. 20.2.2 After the completion of the test run, the representative of the seller informs the purchaser to inspect and then accept the equipment. Within 3 days of the date of the completion of the test run. If the acceptance does not pass, the purchaser should submit a written objection with treatment advice. Otherwise, the equipment is considered as meeting the contractual specifications and being accepted by the purchaser.



Small Fine Wire Drawing Machine 2500 MPM / MAX 4 Vertical Type Bearings
