Positive Triangle Triple Roller Y Type Small Cold Rolling Machine With Separate Motor

Positive Triangle Triple Roller Y Type Small Cold Rolling Machine With Separate Motor
Positive Triangle Triple Roller Y Type Small Cold Rolling Machine With Separate Motor

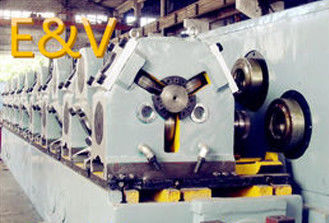

Large Image :  Positive Triangle Triple Roller Y Type Small Cold Rolling Machine With Separate Motor

Product Details:
Place of Origin: China
Brand Name: JC
Model Number: THJYJ
Payment & Shipping Terms:
Minimum Order Quantity: 1sets
Packaging Details: standred export packing
Delivery Time: 90 days
Detailed Product Description
Machine Name: 3 Roller Rolling Mill Type: Y Type
Roller: 248mm Feature: Efficient
Color: Optional Total Power: 500kw
High Light:

3 high rolling mill

,

rolling mill machine

Positive Triangle Triple Roller Y Type Small Cold Rolling Machine With Separate Motor





No. item
Parameter


1 Model:Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.


2 Input dia:Φ55mm,Φ35mm,Φ25mm,Φ20mm,Φ17mm,Φ16mm,Φ14.4mm,Φ12.5mm,Φ8mm etc.


3 Output dia:Φ20mm,Φ18mm,Φ17mm,Φ8mm,Φ6mm,Φ5mm,Φ4mm,Φ3 mm etc.


4 Outlet rod out of roundness:No more than 0.2mm after rolling, or more accurate


5 Rolling pass:2-16 or as each customer’s requirements


6 Rolling speed :Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.


7 Pass schedule ellipse-round hole type system or triangular -round type system


8 total extend compression ratio : 2-10, or as each customer’s requirements


9 each pass compression ratio :1.15~1.4(hole type can change)


10 Total power:100kw~500kw


11 Running mode :Each frame separate transmission speed controlled by frequency or AC servo


12 Operation mode :PLC control, touch screen display,can improve to DCS control or networking


13 type:2 high horizontal- vertical or 3 high positive triangle-inverted triangle


14 nominal roller dia:Φ200mm(double-groove/multi-groove),Φ248mm(double-groove/multi-groove),Φ264mm,Φ300mm,Φ370mm,Φ400mm etc.


15 No. of frame:2-16 or more


16 Main motor:11kw-110kw AC frequency motor or AV servo motor for each


17 roller material:other imported material etc.


18 rolling mill size :A complete production line: length 18m *width 6 m*height 2.5m
Main machine : length 7.6m*width 2.3m *height 2m


19 height of center :height from the ground 1230mm
