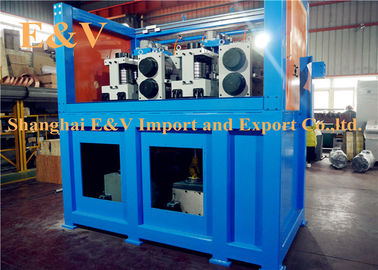

Ф20mm - Ф8mm 1.6 M/S Cold Rolling Mill For Oxygen Free Copper Rod

Ф20mm - Ф8mm 1.6 M/S Cold Rolling Mill For Oxygen Free Copper Rod
Ф20mm - Ф8mm 1.6 M/S Cold Rolling Mill For Oxygen Free Copper Rod

Large Image :  Ф20mm - Ф8mm 1.6 M/S Cold Rolling Mill For Oxygen Free Copper Rod

Product Details:
Place of Origin: CHINA
Brand Name: E&V
Model Number: JC-RM248((Ф20-Ф8)-10P-C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 120days
Supply Ability: 1set per month
Detailed Product Description
Machine Type: Rolling Mill Rolling Size: 20-8
Rolling Speed: 2.5t/h Pass Schedule: Ellipse-round Hole Type System
Rolling Pass: As Needs Function: Make Rod Thinner And Improve Quality
High Light:

copper rod mill

,

roll mill machine

2-roller cold rolling machine for copper rod
I. Breif  Introduction

The unit is divided into 2-roller copper rolling mill and 3-roller copper rolling mill, is used in continuous rolling of copper and copper alloy rod. It's particularly suitable to be used in the rollig of the copper rod made from upward continuous casting machine with copper scrap as raw material,the process will improve the quality of the copper rod and make them more suitable for next process:drawing

It has high efficiency, energy saving, refining, and strengthen the copper rod crystal organization and etc.

II. Feature

Rollers of each rolling stand are driven by separate inverter motor. When the shape of the pass and rotating speed of each pass stand roller are changed at the same time, each stand can operate asynchronously. Processing rollers can change the shape of the pass, and the gear ratio of each stand roller can be set on the touch screen. So on the premise of meeting the stand strength, 2-roller copper rod cold rolling mill can roll different dimensions of copper rod and also roll other materials.

E.g. The common rolling specification is Φ17mm to Φ8mm and Φ20mm to Φ8mm. But when the shape of the pass and the gear ratio are changed, this machine can also roll Φ12.5mm copper rod to Φ6.8mm, or Φ8mm to Φ4mm.


III.Main Data

No. Item Data
1 Model Ф20mm-Ф8mm cold rolling mil for oxygen free copper rod
2 Inlet dia Ф20.0mm
3 Outlet dia Ф8.0mm
4 Outlet rod out of roundness No more than 0.2mm
6 Rolling pass 10
7 Rolling speed Max 1.6 M/S
8 Pass schedule ellipse-round hole type system
9 total extend compression ratio 6.25
10 each pass compression ratio 1.15-1.3
11 Total installing power 200kw



IV.Main component

1. Rolling mill base 2. 2-roller motive power frame(including reducer, Inverter motor) 3. Pay-off frame 4. coiling take-up system 5. Lubrication system 6. Emulsion system 7. Electronic control system 8.straightening device





V.Technical process

1. check the device to see if it works normal

2.after ensuring the normal condition of the equipment and safety operation, turn on the power supply; wait for the console touch screen to enter into the normal working screen,

3. open the oil pump. After the oil pump starts working, lubricating oil flows into the 2 high motive power frame. for a moment, through the transparent oil return pipe the lubricating oil can be seen to come out from the oil return hole of the motive power frame.

4. open the rolling mill operation ( as well as forward and reverse); and then open the emulsion pump.

5.ll the copper rod; the rolling speed can not be too fast at the beginning of rolling copper rod, but it can be speed up to normal produce when copper rod comes out from rolling mill and penetrates into take-up machine and coil basket. after penetration take up and looping basket 6. increase speed. turn into normal production.

7.turn off the rolling mill(take-up machine),emulsion pump,oil pump,main power in order.



VI.Why you should choose us
1.Our machines have the first-class quality in China.
2.The delivery time is generally about 30~100 days.
3.We have independent right to do foreign trade.
4.We always trade with foreign countries on the basis of credit,equality and mutual benefit.
Our company is engaged in manufacturing metal casting machines,wire drawing machines,melting furnaces and extrusion machines. We are a large scale group with new technology, update skill, latest device and combining research, production and sales









Ф20mm - Ф8mm 1.6 M/S Cold Rolling Mill For Oxygen Free Copper Rod 0



55mm, 35mm, 25mm, 20mm, 17mm, 16mm, 14.4mm, 12.5mm, 8mm

20mm,18mm, 17mm, 8mm, 6mm, 5mm, 4mm, 3mm

Ф20mm - Ф8mm 1.6 M/S Cold Rolling Mill For Oxygen Free Copper Rod 1
