|Machine Type:||Rolling Mill||Rolling Speed:||5m/s|
|Rolling Pass:||2/6/8/10||Total Power:||200kw|
rolling mill machinery,
rod rolling machine
Horizontal and vertical frame copper rod rolling mills

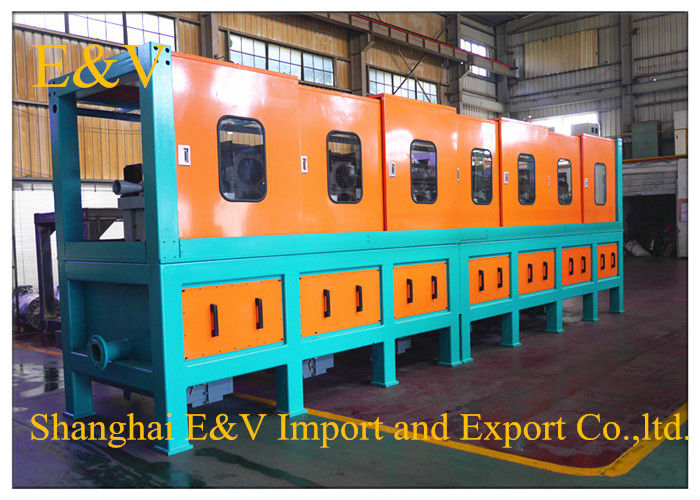

8mm copper rods 2-roller cold/hot rolling mill/ cold rolling mills
I. major information
The main rolling mill is the important part of the continuous cold rolling mill . It includes base, frame, reducer, motor etc. Each frame is driven by an independent motor. All the basic rolling process is finished on the main rolling mill, and the number of the frames is different according to different rolling size.
II. Advantage of 2 high cold rolling mill
Rollers of each rolling stand are driven by separate inverter motor. When the shape of the pass and rotating speed of each pass stand roller are changed at the same time, each stand can operate asynchronously. Processing rollers can change the shape of the pass, and the gear ratio of each stand roller can be set on the touch screen. So on the premise of meeting the stand strength, 2-roller copper rod cold rolling mill can roll different dimensions of copper rod and also roll other materials.
No. Item Data
1 Model 20mm-8mm cold rolling mil for oxygen free copper rod
2 Inlet dia 20.0mm
3 Outlet dia 8.0mm
4 Outlet rod out of roundness No more than 0.2mm
6 Rolling pass 10
7 Rolling speed Max 1.6 M/S
8 Pass schedule ellipse-round hole type system
9 total extend compression ratio 6.25
10 each pass compression ratio 1.15-1.3
11 Total installing power 200kw
1. Rolling mill base 2. 2-roller motive power frame(including reducer, Inverter motor) 3. Pay-off frame 4. coiling take-up system 5. Lubrication system 6. Emulsion system 7. Electronic control system 8.straightening device
V.Spare parts for 20mm-8mm forming units
VI.Quality Warranty Period
The seller guarantees that the equipment performance complies with the requirements of the contract. The guarantee period of the mechanical parts of the equipment is 12 months, calculated from the 31st day since the BL date . (The guarantee period of the electrical parts is 6 months from the delivery date written on the contract; wearing parts are not included in the guarantee period.)
the technical documents supplied by the seller have to complies with the contract.
Within the guarantee period of contact, defects resulting from the seller's reasons will be serviced and repaired free of charge; defects caused by the buyer will be promptly serviced by the seller, but the buyer bears all expenses.
55mm, 35mm, 25mm, 20mm, 17mm, 16mm, 14.4mm, 12.5mm, 8mm
20mm,18mm, 17mm, 8mm, 6mm, 5mm, 4mm, 3mm
