Horizontal / Vertical Frame Copper Rod Continuous Cold Rolling Mill Outlet Dia 8mm

China Horizontal / Vertical Frame Copper Rod Continuous Cold Rolling Mill Outlet Dia 8mm supplier

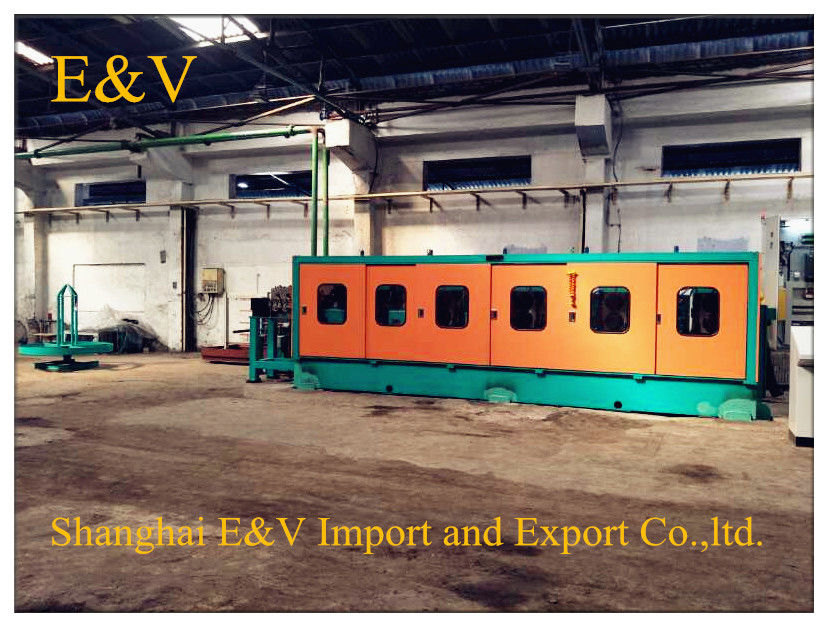

Large Image :  Horizontal / Vertical Frame Copper Rod Continuous Cold Rolling Mill Outlet Dia 8mm

Product Details:

Place of Origin: CHINA
Brand Name: E&V
Model Number: JC-RM248((Ф8-Ф4)-8P-1C

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 120days
Supply Ability: 1set per month
Contact Now
Detailed Product Description
Machine Type: Rolling Mill Rolling Speed: 5m/s
Rolling Pass: 2/6/8/10 Total Power: 200kw
Operation Method: PLC Color: Optional

horizontal and vertical frame copper rod rolling mills/copper rod continuous cold rolling mill
I. major  information
Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products;


II. Advantage of 2 high cold rolling mill
Rollers of each rolling stand are driven by separate inverter motor. When the shape of the pass and rotating speed of each pass stand roller are changed at the same time, each stand can operate asynchronously. Processing rollers can change the shape of the pass, and the gear ratio of each stand roller can be set on the touch screen. So on the premise of meeting the stand strength, 2-roller copper rod cold rolling mill can roll different dimensions of copper rod and also roll other materials.



III.Main Data

No. Item Data

1 Model 20mm-8mm cold rolling mil for oxygen free copper rod

2 Inlet dia 20.0mm

3 Outlet dia 8.0mm

4 Outlet rod out of roundness No more than 0.2mm

6 Rolling pass 10

7 Rolling speed Max 1.6 M/S

8 Pass schedule ellipse-round hole type system

9 total extend compression ratio 6.25

10 each pass compression ratio 1.15-1.3

11 Total installing power 200kw



IV.Main component

1. Rolling mill base 2. 2-roller motive power frame(including reducer, Inverter motor) 3. Pay-off frame 4. coiling take-up system 5. Lubrication system 6. Emulsion system 7. Electronic control system 8.straightening device






V.Spare parts for 20mm-8mm forming units

No. Name
1 rollers
2 Roll shaft
3 guide
4 Expansion sleeve




VI.Technical process
 First, check the device to see if it works normal (including that roll wheel stands must be fill with butter per shift, the sanitary conditions of frame and each guide and so on); after ensuring the normal condition of the equipment and safety operation, turn on the power supply; wait for the console touch screen to enter into the normal working screen, then open the oil pump. After the oil pump starts working, lubricating oil flows into the 2 high motive power frame. for a moment, through the transparent oil return pipe the lubricating oil can be seen to come out from the oil return hole of the motive power frame. At this time, open the rolling mill operation ( as well as forward and reverse); and then open the emulsion pump, wait for emulsion to flow out from each cooling point of the 2 high frame and roll the copper rod; the rolling speed can not be too fast at the beginning of rolling copper rod, but it can be speed up to normal produce when copper rod comes out from rolling mill and penetrates into take-up machine and coil basket. after penetration take up and looping basket ,can increase speed. turn into normal production. When finish, turn off the rolling mill(take-up machine),emulsion pump,oil pump,main power in order.


Horizontal / Vertical Frame Copper Rod Continuous Cold Rolling Mill Outlet Dia 8mm

55mm, 35mm, 25mm, 20mm, 17mm, 16mm, 14.4mm, 12.5mm, 8mm

20mm,18mm, 17mm, 8mm, 6mm, 5mm, 4mm, 3mm
