50mm - 25mm Aluminum rod rolling mill / Metal cold rolling mill

50mm - 25mm Aluminum rod rolling mill / Metal cold rolling mill
50mm - 25mm Aluminum rod rolling mill / Metal cold rolling mill

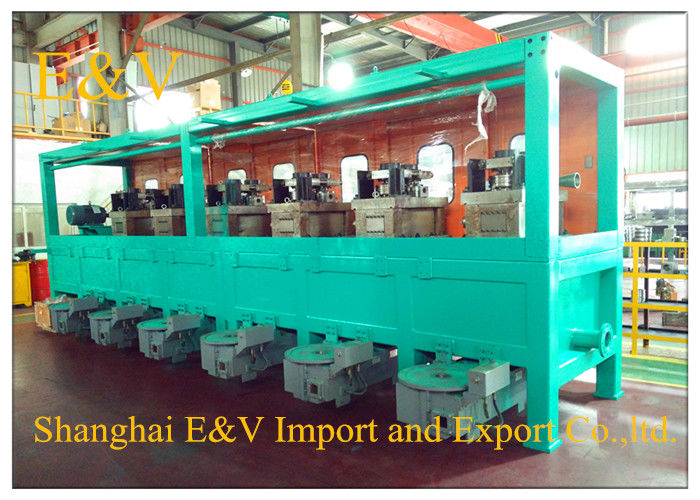

Large Image :  50mm - 25mm Aluminum rod rolling mill / Metal cold rolling mill

Product Details:
Place of Origin: CHINA
Brand Name: E&V
Model Number: JC-RM248((Ф8-Ф4)-8P-1C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 120days
Supply Ability: 1set per month
Detailed Product Description
Machine Type: Rolling Mill Input Dia: φ12.0mm-φ50.0mm;
Output Dia: φ6.0mm-φ20.0mm; Total Power: 200kw
Operation Method: PLC Color: Optional
High Light:

rolling mill machinery

,

rod rolling machine

Aluminum rod rolling mill
I. major  information
The unit is used for copper rod cold rolling. Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up.

Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products;



II. Advantage
i) Stable product quality;
ii) Low energy consumption;
iii) Roll all kind of section
iv)Separate motor
v) Quickly change rollers
vi) Reasonable price

vii)Plc control

III.Main parameter

1.Model:Alloy cold rolling mill;

2.Input dia:φ12.0mm-φ50.0mm;

3.Output dia:φ6.0mm-φ20.0mm;

4.Outlet rod out of roundness :No more than 0.2mm;

5.Rolling pass:Be subject to rolling size;

6.Rolling speed:Be subject to technology;

7.Pass schedule:ellipse-round hole type system;

8.total extend compression ratio:

IV.Main component

1 main rolling mill

The main rolling mill is the important part of the continuous cold rolling mill . It includes base, frame, reducer, motor etc.

2 guide system

 Each pass has entry and exit guide, odd frame of entry guide glides to lead in, and even frame rolls to lead in.

3 pay off



4 Coiling take-up machine

This machine consists of draught gear and take-up device, meets the characteristics of taking-up enclosure and requirements of constant taking-up speed.

5 Oil lubrication system

6 Emulsion system

7 electrical system

The electrical system includes the power system and the controlling system.

8 feeding and straightening device

The feeding and straightening device is in front of the main rolling mill, and it is used to straighten the rods so that it can feed the rod easier.



V.None scope of supply

No. Name
1 Infrastructure
2 Power supply system
3 Wire and cable
4 Crane
5 Emulsion pool
6 Emulsion filter
7 Emulsion pump
8 emulsion
9 Machine oil
10 pipeline



VI.The main spare parts



No. Name Model
1 rollers
2 Roll shaft
3 guide
4 Expansion sleeve Z5(Ф100*Ф145)



50mm - 25mm Aluminum rod rolling mill / Metal cold rolling mill 0



55mm, 35mm, 25mm, 20mm, 17mm, 16mm, 14.4mm, 12.5mm, 8mm

20mm,18mm, 17mm, 8mm, 6mm, 5mm, 4mm, 3mm
