17mm 5000t Upward Continuous Casting Machine for bright and long oxygen - free copper rod

17mm 5000t Upward Continuous Casting Machine for bright and long oxygen - free copper rod
17mm 5000t Upward Continuous Casting Machine for bright and long oxygen - free copper rod

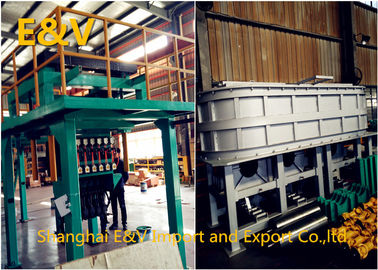

Large Image :  17mm 5000t Upward Continuous Casting Machine for bright and long oxygen - free copper rod

Product Details:
Place of Origin: China
Brand Name: E&V
Model Number: SYJ2408-I5
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Detailed Product Description
Color: Optional Yearly Capacity: 5000mt
Function: Producing Copper Rod Strand Qty: 10
Product: 8mm Copper Rod Working Hour: 7920H
Name: Upcast Machine
High Light:

continuous casting machines

,

Vertical Casting Machine

,

5000t Upward Continuous Casting Machine

17mm 5000t Upward Continuous Casting Machine for copper rod

Specifications

1.To produce oxygen free copper rod

2.Suitable for different rod size

3.Induction furnace

4.Servo driving and PLC control

5.Easy maintenance

6.High speed

7.High stability and efficiency

8.Customized design

Brief discription

This upward continuous casting system is used to produce bright and long oxygen-free copper rod. The system is capable of producing directly from cathode copper to bright and long oxygen-free copper rod , copper tube,  copper strip and other special shaped copper material . the copper rod diameters will be Ø8mm, Ø12.5 mm, Ø14.4 mm, Ø17 mm, Ø20 mm, Ø25 mm and so on.

As compared with the black copper rod produced by traditional mangler from copper ingot, the rod produced by this new upward continuous casting technology has its advantage of better quality, low production cost, low investment and no pollution in production.



Main Composed

a) furnace

b) Continuous casting machine

c) Rack of directive wheels

d) Speed controller

e) Two-stroke coiler

f) Cooling system

g) Temperature test system

h) Cathode charging system

i ) Electric control system






No. Item Data
1 Model No SYJ1017-I3
2 Annual capacity 5000tons
3 Furnace structure 3 body (2 melting,1 holding )
4 Casting Strands 10
6 Casting rod diameter: Ф17mm
7 Upward casting speed 0~1000mm/min
8 Annual working time 7920hour
9 Liquid tracking precision ±2mm
10 Take-up coil standard Ф700mm × Ф1500mm× 800mm
11 Copper melting velocity 650kg/h
12 Copper melting power consumption <350kwh/ton
13 Take-up form manual adjust
14 Take-up plate driven approach Pushed by the copper rod
15 Material feeding method whole piece of electrolytic copper cathode fed by electric hoist
16 Upward driven approach driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
17 Rod clamping method manual clamping



Feature

1.Energy-effcient furance,high-efficient of melting,long working life ,a better heating preservation effect.

2.Coil current have warning function, to avoid the stoppage of copper channel.

3.Quick lifting device is usd for installing and channging the crystallizer.high-speed installing(within 10 seconds).Using for emergency situation.

4.The gapless connecting expansion sleeve is used for the traction device,the PLC is used to control the servo motor correctly,and to assure that each order from the PLC is accurate.

5.High accuracy and low backlash planetary reducer is used to make the crystallizing time more accurate,thus to increase the crystallzing quality.

6.The controlling system of furnace temperature uses paperless recorder.which is connected to the manager's computer.All the trmperture records within one moment can be checked ,through which the controlling of the furance temperture can be more effective and the rod quality can be increased.(according to clients' need)



17mm 5000t Upward Continuous Casting Machine for bright and long oxygen - free copper rod 0
