Large PLC control Copper Strip Casting Machine 0 - 150mm/min

China Large  PLC control Copper Strip Casting Machine 0 - 150mm/min supplier

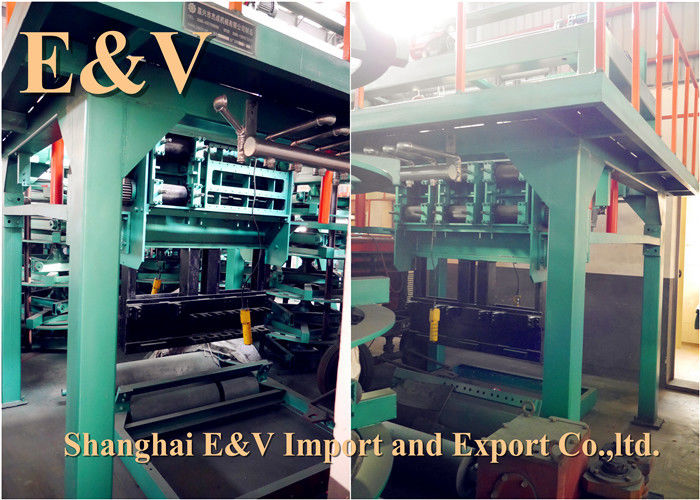

Large Image :  Large PLC control Copper Strip Casting Machine 0 - 150mm/min

Product Details:

Place of Origin: China
Brand Name: E&V
Model Number: SYJ06250*10-I3

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 90 DAYS
Supply Ability: 1SET PER MONTH
Contact Now
Detailed Product Description
Yearly Capacity: 3000mt-12000mt Product: Copper Strip
Material: Steel Warranty: One Year
Color: Optional Function: Producing Copper Strip

0-150mm/min Upward Oxygen-free Copper Strip Casting Machine



Product Introduction



The born and development of Upward continuous copper strip casting machine that break the

traditional copper and copper alloy producing way shorten the copper processing time.The

traditional process is divided three steps of melting and casting,heating process and cooling

process.



Advantages



1)The highest grade of the heat-resistant andalusite furnace material.



2) PLC controlling, and servo motor driven system.



3) Manpower: 2 persons each shift.



Main Technology Parameter Of Copper Strip Up-casting Machine



No. Item Parameter Remark
1 Model TPSYJ250*10*6-I3 Adjustable as per customer’s requirements
2 Yearly capacity 3000mt
3 Total power 250KW
4 Furnace structure three- body furnace(2melting furnace,1 holding furnace) Adjustable as per customer’s requirements
5 Casting strands 6 Adjustable as per customer’s requirements
6 Copper strip size 250*10mm Adjustable as per customer’s requirements
7 Casting speed 0-150mm/min
8 annual working time 7920h
9 Liquid tracking precision ±2mm
10 Take-up coil standard 600kg/coil
11 Copper melting velocity 380kg/h Adjustable as per customer’s requirements
12 Copper melting power consumption ‹350kwh/ton
13 Take-up form Coiling
14 Feeding mode whole piece of electrolytic copper cathode fed by electric hoist
15 Driven mode 3pc copper strip:1pc 4.4kwservo motor
16 Rod clamping method Manual clamping



Large  PLC control Copper Strip Casting Machine 0 - 150mm/min

Our Services

Supervision of Installation and Commissioning of the Equipments we supplied.



Packaging & Shipping

Standard export packing suitable for long distance sea transportation
