Product Details:
Place of Origin: CHINA
Brand Name: E&V
Model Number: JC-RM248((Ф20-Ф8)-10P-C
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standard packing
Delivery Time: 120days
Supply Ability: 1set per month
Detailed Product Description
Machine Type: Rolling Mill Rolling Size: 20-8
Rolling Speed: 2.5t/h Pass Schedule: Ellipse-round Hole Type System
Rolling Pass: As Needs Color: Optional
High Light:

2 roll mill

,

two high rolling mill

20mm-8mm 200kw High efficiency 2-Roller Copper Rod Cold Rolling Mil

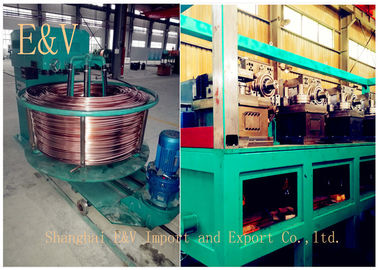

metal rolling mill / Two Roll Mill Machine Speed High speed 2.5t/h 200kw 0

Equipment Description



The unit is used for copper rod cold rolling. Through cold rolling, the mechanical behavior can be raised and the defects from casting can be also fetched up. The producing capacity is 2.5ton / hour when roll from Φ20mm to Φ8mm.

Mechanical design uses advanced crafts and high-quality materials, such as roller; the appearance of the machine adopts German design,which has higher work efficiency than other similar products;Electrical parts assemble the imported parts from Japan, which have safe and reliable performance, high technological content; the whole production process is monitored by color touch screen with clear data displaying, easy operating and high automaticity. 2 high motive power frame copper rod rolling mill is beautiful, efficient and durable.

Main component

1. Rolling mill base 2. 2-roller motive power frame(including reducer, Inverter motor) 3. Pay-off frame 4. coiling take-up system 5. Lubrication system 6. Emulsion system 7. Electronic control system 8.straightening device



Main Parameter:



o. item Parameter
1 Model: Copper rod cold rolling mill, copper alloy cold rolling mill. Other metal rod cold rolling mill, other alloy cold rolling mill,copper / aluminum continuous casting and rolling etc.
2 Input dia 55mm,35mm,25mm,20mm,17mm,16mm,14.4mm,12.5mm,8mm etc.
3 Output dia 20mm,18mm,17mm,8mm,6mm,5mm,4mm,3 mm etc.
4 Outlet rod out of roundness No more than 0.2mm after rolling, or more accurate
5 Rolling pass 2-16 or as each customer’s requirements
6 Rolling speed Max 3M/s for continuous rolling, Max 5M/s for discontinuous rolling.
7 Pass schedule ellipse-round hole type system or triangular -round type system
8 total extend compression ratio 2-10, or as each customer’s requirements
9 each pass compression ratio 1.15~1.4(hole type can change)
10 Total power 100kw~500kw
11 Running mode Each frame separate transmission speed controlled by frequency or AC servo
12 Operation mode PLC control, touch screen display,can improve to DCS control or networking
13 type 2 high horizontal- vertical or 3 high positive triangle-inverted triangle
14 nominal roller dia 200mm(double-groove/multi-groove),248mm(double-groove/multi-groove),264mm,300mm,370mm,400mm etc.
15 No. of frame 2-16 or more
16 Main motor 11kw-110kw AC frequency motor or AV servo motor for each
17 roller material other imported material etc.
18 rolling mill size

a complete production line: length 18m *width 6 m*height 2.5m

Main machine : length 7.6m*width 2.3m *height 2m

19 height of center height from the ground 1230mm

metal rolling mill / Two Roll Mill Machine Speed High speed 2.5t/h 200kw 1



55mm, 35mm, 25mm, 20mm, 17mm, 16mm, 14.4mm, 12.5mm, 8mm

20mm,18mm, 17mm, 8mm, 6mm, 5mm, 4mm, 3mm





Delivery

1. Delivery time:120 working days after the complete receipt of the deposit.

  • The buyer bears the equipment transportation and insurance costs; the buyer provides unloading tools and bears the unloading costs.
  • When the equipment arrives at the buyer's site, the buyer should check the goods, sign written receiving records, and confirm the consistency between the goods and the lists of shipment.
