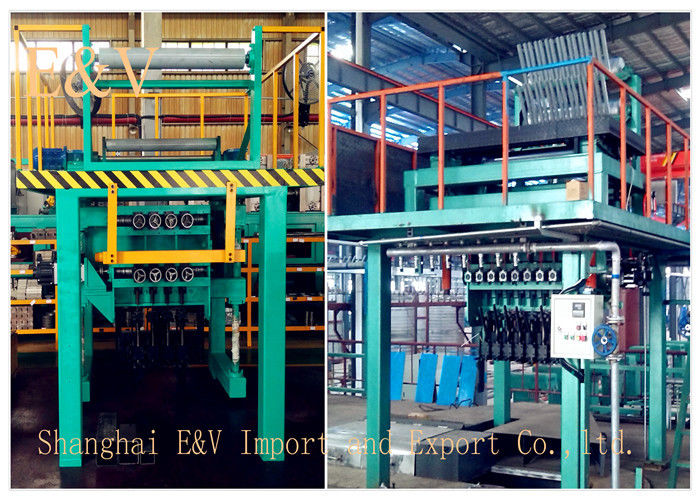

Bright copper rod upward continuous casting machine 1000 ton 50Kw melting

Bright copper rod upward continuous casting machine 1000 ton 50Kw melting
Bright copper rod upward continuous casting machine 1000 ton 50Kw melting

Large Image :  Bright copper rod upward continuous casting machine 1000 ton 50Kw melting

Product Details:
Place of Origin: China
Brand Name: E&V
Certification: CE
Model Number: SYJ0208-I3
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: standrad packing
Delivery Time: 60 DAYS
Supply Ability: 1SET PER MONTH
Detailed Product Description
Color: Optional Yearly Capacity: 1000-12000mt
Function: Producing Copper Rod Product: 8mm Copper Rod
Strand: 2
High Light:

copper casting machine

,

copper rod casting machine

,

continuous casting machine 50Kw

8mm 1000ton bright copper rod upward continuous casting machine

This upward continuous casting line is mainly used for producing bright oxygen free copper rod, flat copper bar and copper strip.



Main technical parameter:

Raw material: copper cathode, bright copper wire
Product: oxygen free pure copper rod
Output: 1000T /year
Strand: 2 rods
Casting specification: Φ8mm - Φ25mm,
Power: 50Kw (melting) + 50Kw (holding)
Allowance of irregular deformation: max. diameter is ≤ ±0.2mm.
Drive method: driven by AC servo motor
Control method: by PLC



PLC: Siemens, Mitsubishi Servo motor: Siemens, Mitsubishi Low-voltage parts:Siemens, Schneider

Main Technology Parameter For Copper Rod Up-casting Machine1









2000MTΦ8mm→Φ14.4mm



2000MTΦ17mm→Φ30mm



3000MTΦ8mm→Φ14.4mm

Main para-meter 1 Model: SYJ0408-I2 Model: SYJ0417-I2 Model: SYJ0608-I3
2 Yearly capacity:2000mt Yearly capacity:2000mt Yearly capacity:3000mt
3 Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:4 Casting strands:4 Casting strands:6
5 Casting rod diameter : Φ8mm→Φ14.4mm Casting rod diameter : Φ17mm→Φ30mm Casting rod diameter : Φ8mm→Φ14.4mm
6 casting speed:0~3000mm/min casting speed: 0~1000mm/min casting speed: 0~3000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:260kg/h Copper melting velocity:260kg/h Copper melting velocity:380kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: frequency automatic adjust Take-up form: automatic adjust Take-up form: frequency automatic adjust
13 Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by copper rod,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method:air clamping Rod clamping method: manual clamping Rod clamping method:air clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:150KW AC three-phase 380V Total power:150KW AC three-phase 380V Total power:200KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)





Main Technology Parameter For Copper Rod Up-casting Machine2







3000MT Ф17mm→Ф30mm



5000MT Ф8mm→Ф14.4mm



5000MT Ф17mm→Ф30mm

Main

Para-meter

1 Model: SYJ0617-I3 Model: SYJ1008-I3 Model: :SYJ1017-I3
2 Yearly capacity:3000mt Yearly capacity:5000mt Yearly capacity:5000mt
3 Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands:6 Casting strands:10 Casting strands:10
5

Casting rod diameter :

Ф17mm→Ф30mm

Casting rod diameter :

Ф8mm→Ф14.4mm

Casting rod diameter :

Ф17mm→Ф30mm

6 casting speed:0~1000mm/min casting speed:0~3000mm/min casting speed:0~1000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:380kg/h Copper melting velocity:650kg/h Copper melting velocity:650kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: automatic adjust Take-up form: frequency automatic adjust Take-up form: automatic adjust
13 Take-up plate driven approach: pushed by copper rod,manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by copper rod,manual adjusting
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method:manual clamping Rod clamping method:air clamping Rod clamping method: manual clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:200KW AC three-phase 380V Total power:240KW AC three-phase 380V Total power:240KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)



A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)





Main Technology Parameter For Copper Rod Up-casting Machine3







8000MTФ8mm→Ф14.4mm



8000MTФ17mm→Ф30mm



10000MTФ8mm→Ф14.4mm

Main para-meter 1 Model :SYJ1608-I3 Model :SYJ1617-I3 Model :SYJ2008-I3
2 Yearly capacity:8000mt Yearly capacity:8000mt Yearly capacity:10000mt
3 Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace)
4 Casting strands :16 Casting strands :16 Casting strands :20
5

Casting diameter:

Ф8mm→Ф14.4mm

Casting diameter:

Ф17mm→Ф30mm

Casting diameter:

Ф8mm→Ф14.4mm

6 Casting speed:0~3000mm/min Casting speed :0~1000mm/min Casting speed:0~3000mm/min
7 annual working time:7920h annual working time:7920h annual working time:7920h
8 Liquid tracking precision:±2mm Liquid tracking precision:±2mm Liquid tracking precision:±2mm
9

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

Take-up coil standard:

φ700mm×φ1500mm×800mm

10 Copper melting velocity:1020kg/h Copper melting velocity:1020kg/h Copper melting velocity:1270kg/h
11 Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton Copper melting power consumption:<350kwh/ton
12 Take-up form: frequency automatic adjust Take-up form: automatic adjust Take-up form: frequency automatic adjust
13 Take-up plate driven approach: PLC control, frequency adjust,automatic coiling Take-up plate driven approach: pushed by rod, manual adjusting Take-up plate driven approach: PLC control, frequency adjust,automatic coiling
14 Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist
15 Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet
16 Rod clamping method: air clamping Rod clamping method: manual clamping Rod clamping method: air clamping
17 Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen Operation interface:date display,servo motor controlled by touch screen
18 Total power:400KW AC three-phase 380V Total power:400KW AC three-phase 380V Total power:500KW AC three-phase 380V

Price

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)

A price: price negotiable

AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling )

AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise)
